SPECIFICATIONS

Applicable Models: See Product Details

Item ID: LR191532

Major Material: Aluminum

OEM Number: CU1826FS

Origin: Jiangsu,China

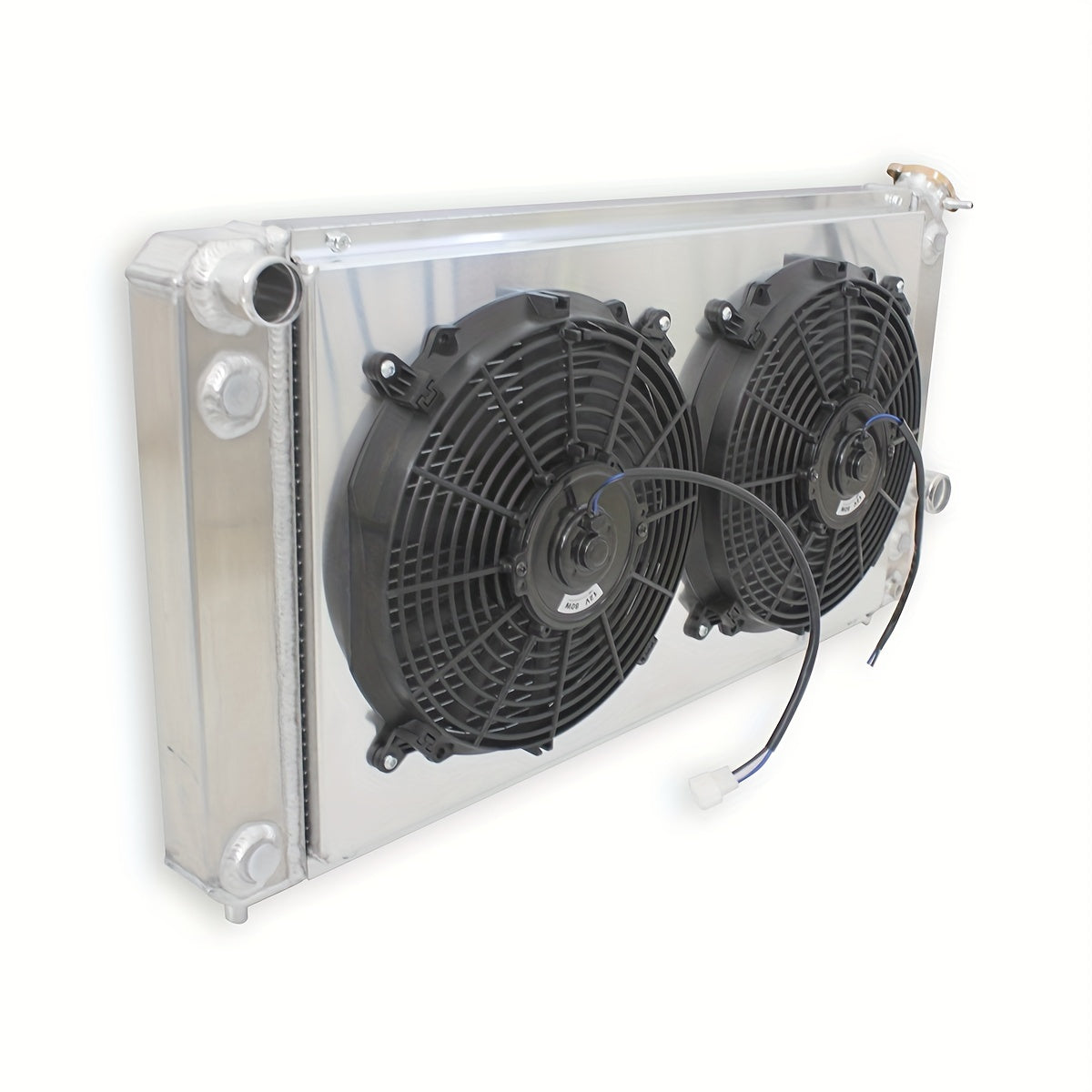

Radiator Details


* Overall Dimensions: 17-5/8in. Height X 32in. Wide

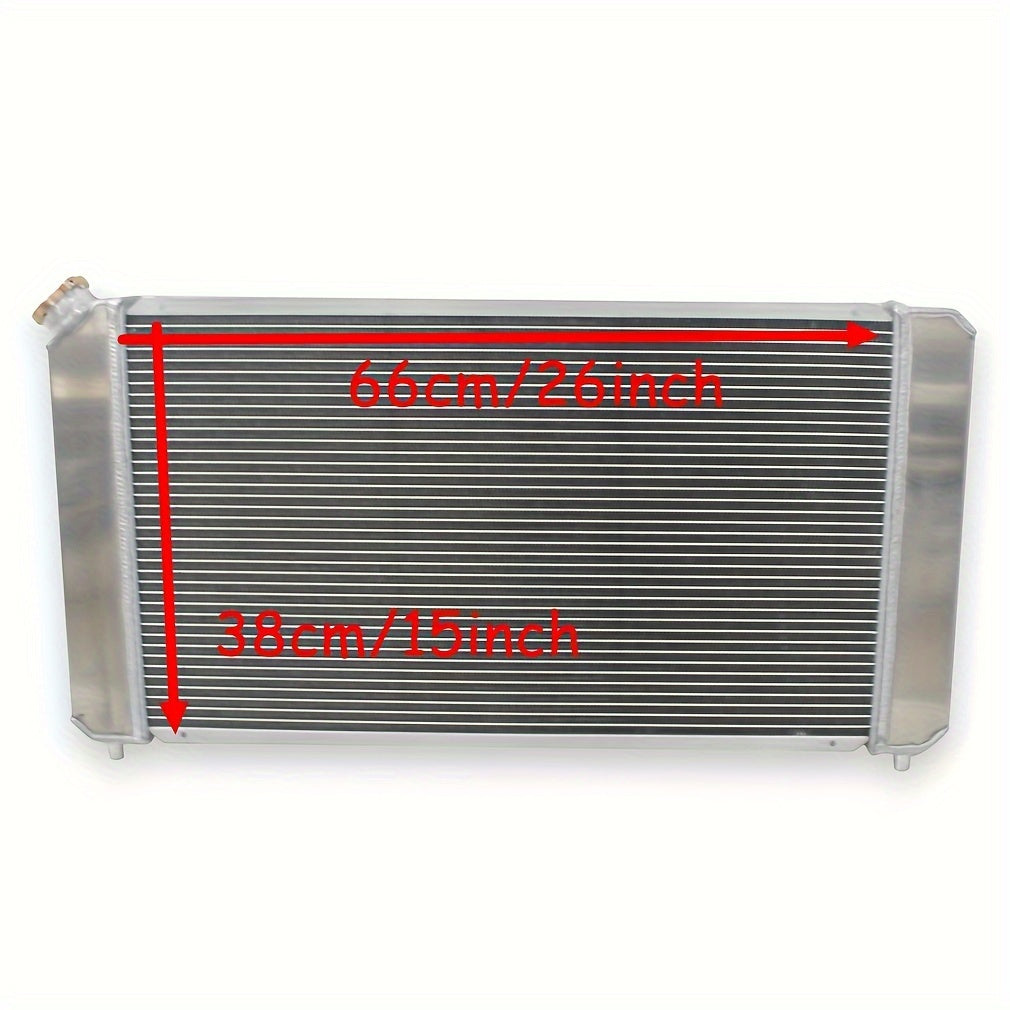

* Core Size: 668mm X 378mm X 44mm / 26 X 15x 1.73 Inches

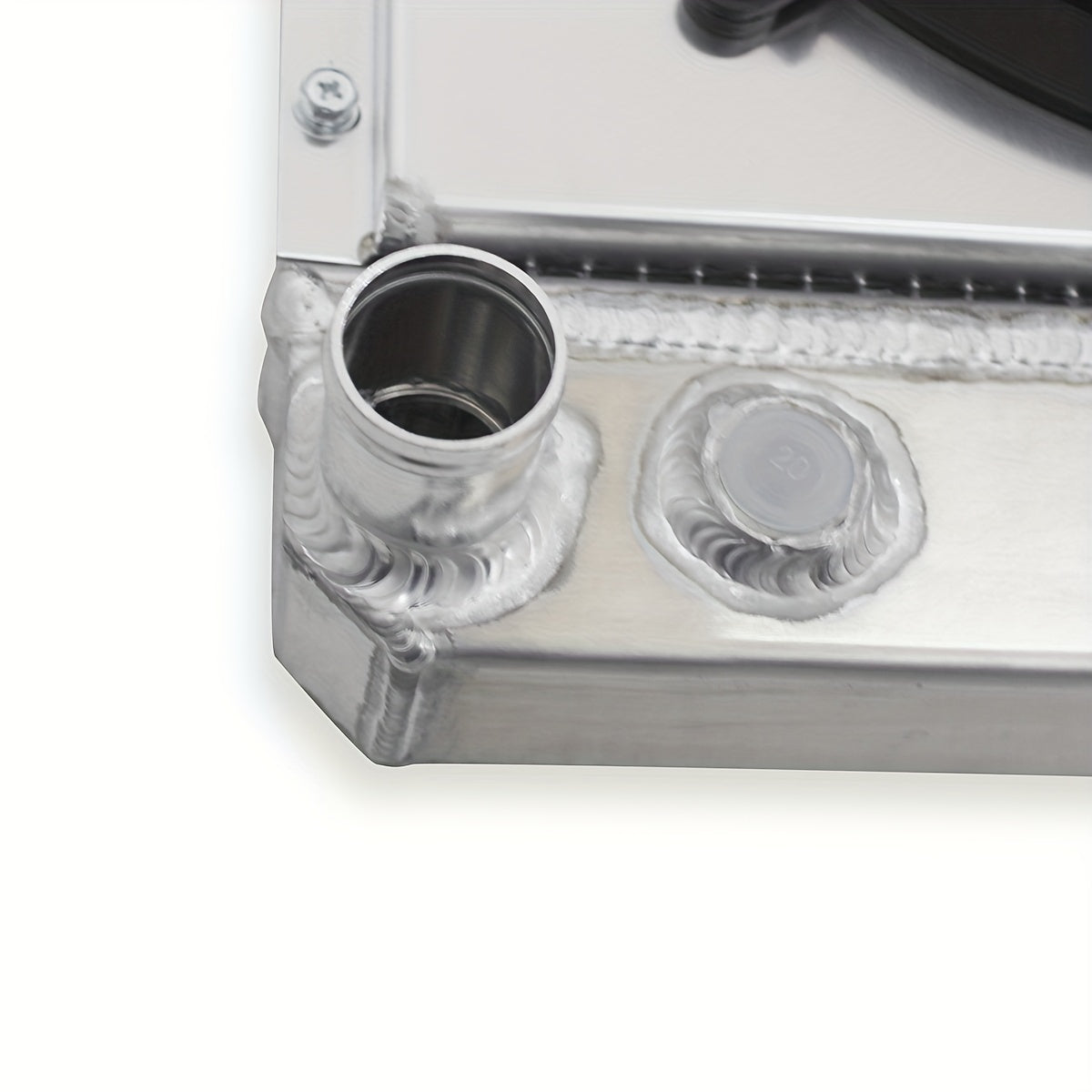

* Inlet/Outlet: 1-3/8in. / 1-1/2in.

* Rows: 3 Rows / Core

* Transmission Oil Cooler: Included

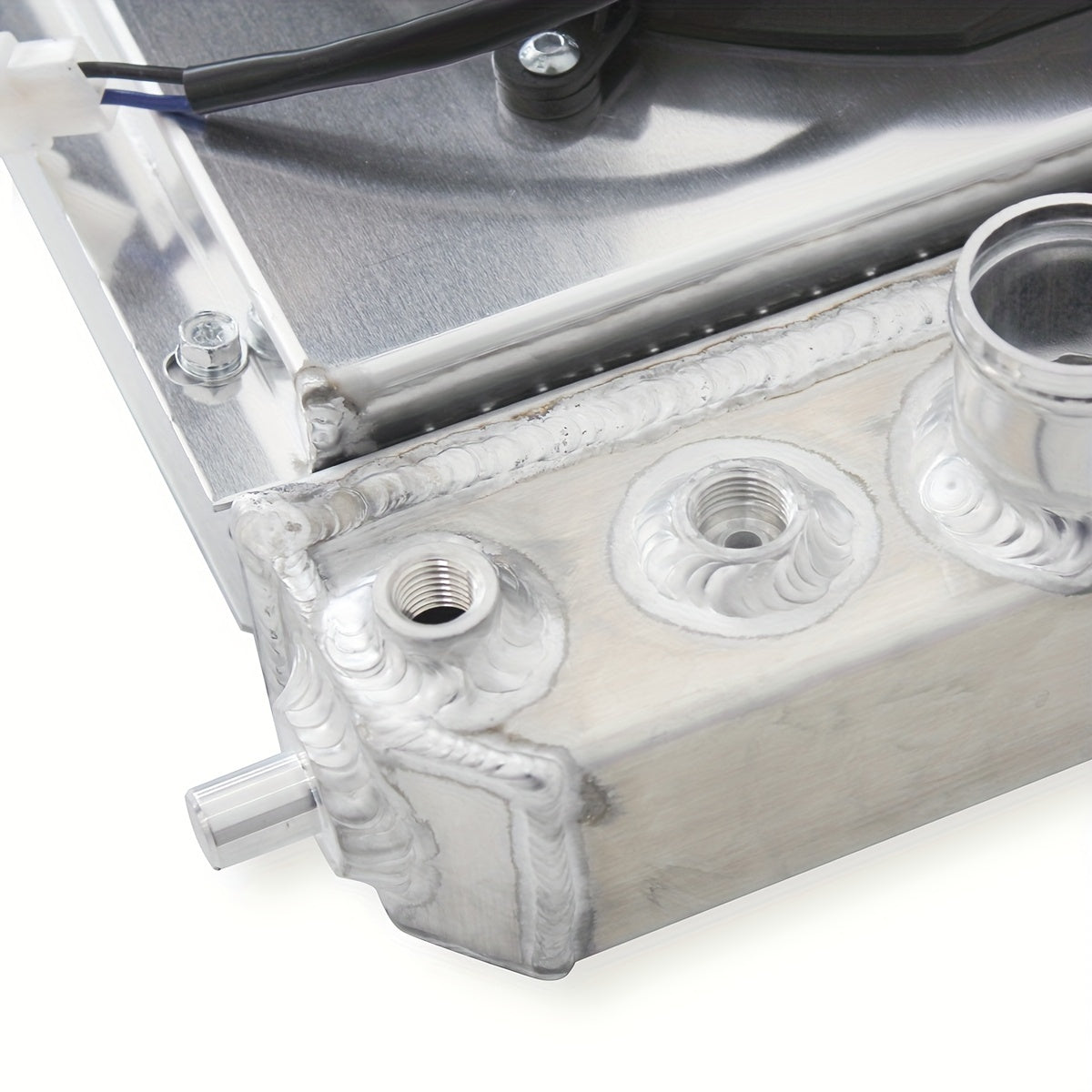

* Transmission Oil Cooler Fittings: Built-in (￠26*290*3/8-18NPT(Z) )

* Made Of High Quality Aluminum Material For Maximum Cooling Efficiency

* High Performance Spec. 3-rows Racing Design.

* Improves Cooling By 35 - 45% Temp.

* Light Weight Direct Bolt-on OE

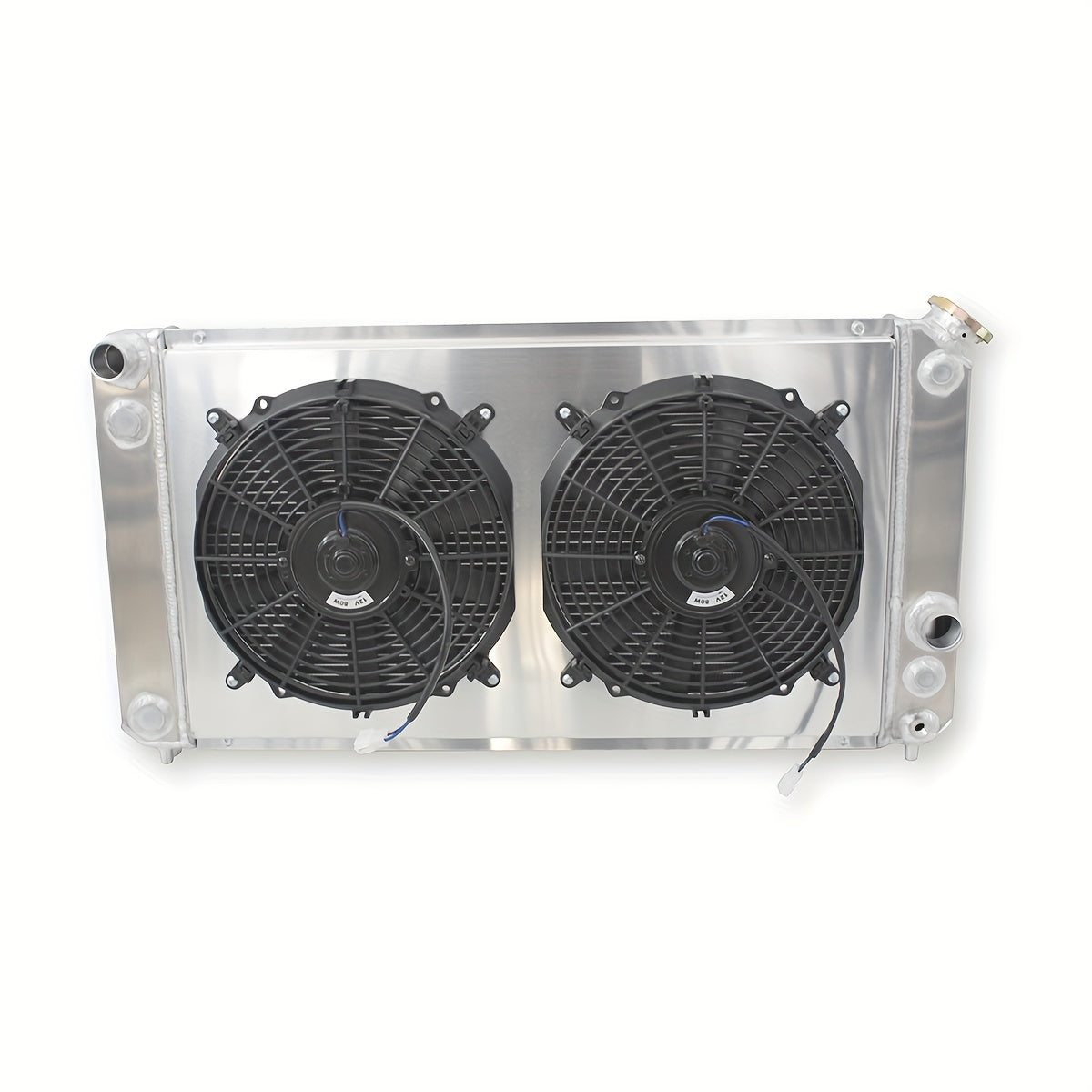

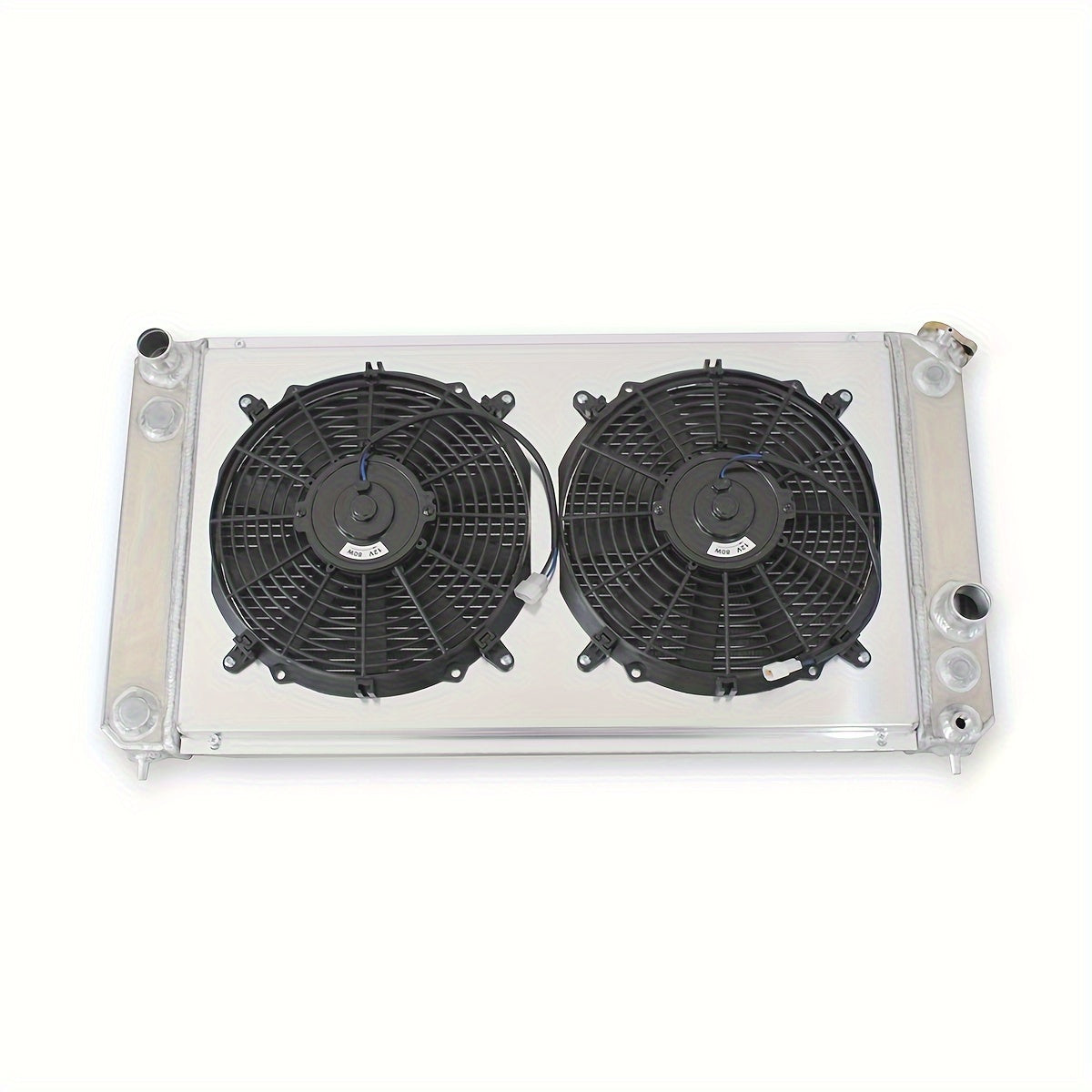

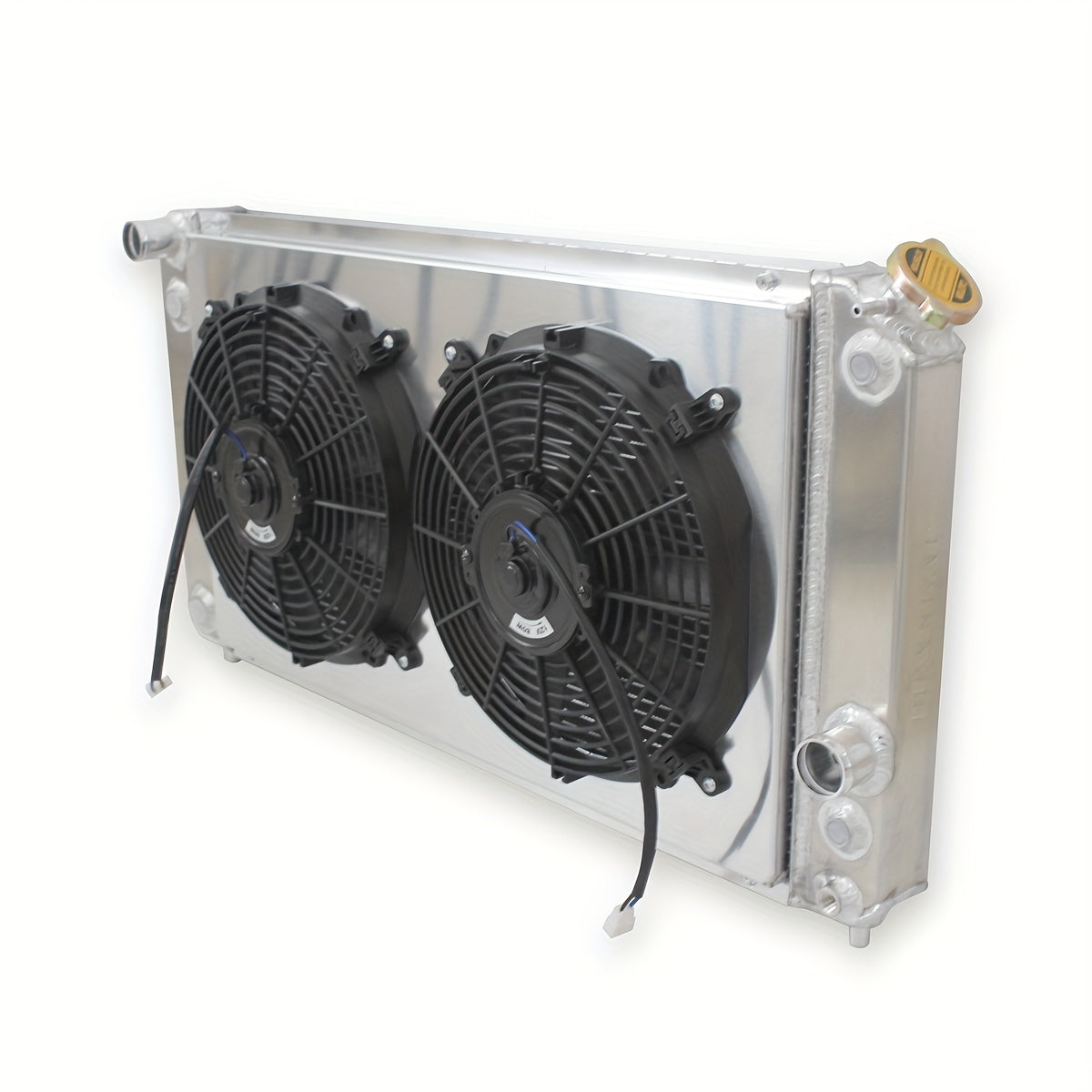

Fan Features:

CFM: 1550
Fan Diameter: 285mm
Blade Diameter: 11"
Housing Diamter: 12.5"
Overall Thickness: 2.50"
Fan RPM: 2000
Number Of Blades: 10
In Rush Current: 12.7 Amps
Normal Current: 7.6 Amps
Blade Style: Straight
Voltage: 12V
Air Temp While Tested: 72°F
Type Of Ends: Loose
Motor Can Run In Reversed: Yes
