SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Deatschwerks Interchange: Deatschwerks DW200, DW300, DW65C

Drive Type: Electrical

Fuel Type: Gasoline

Interchange: 2520696, 2205081, 2520777, 2520865, 2520875

Manufacturer Part Number: 50-1200

OEM NO.: 50-1200

Origin: US(Origin)

Other Part Number: 2521561, 2521630, 2521691, 2521713, 2521741, 2521746

Placement on Vehicle: Fuel Tank

Polaris Fuel Pump Assembly Interchange: 2204403, 2204502

Special Features: Direct Replacement

Warranty: 3 Years Warranty

semi_Choice: yes

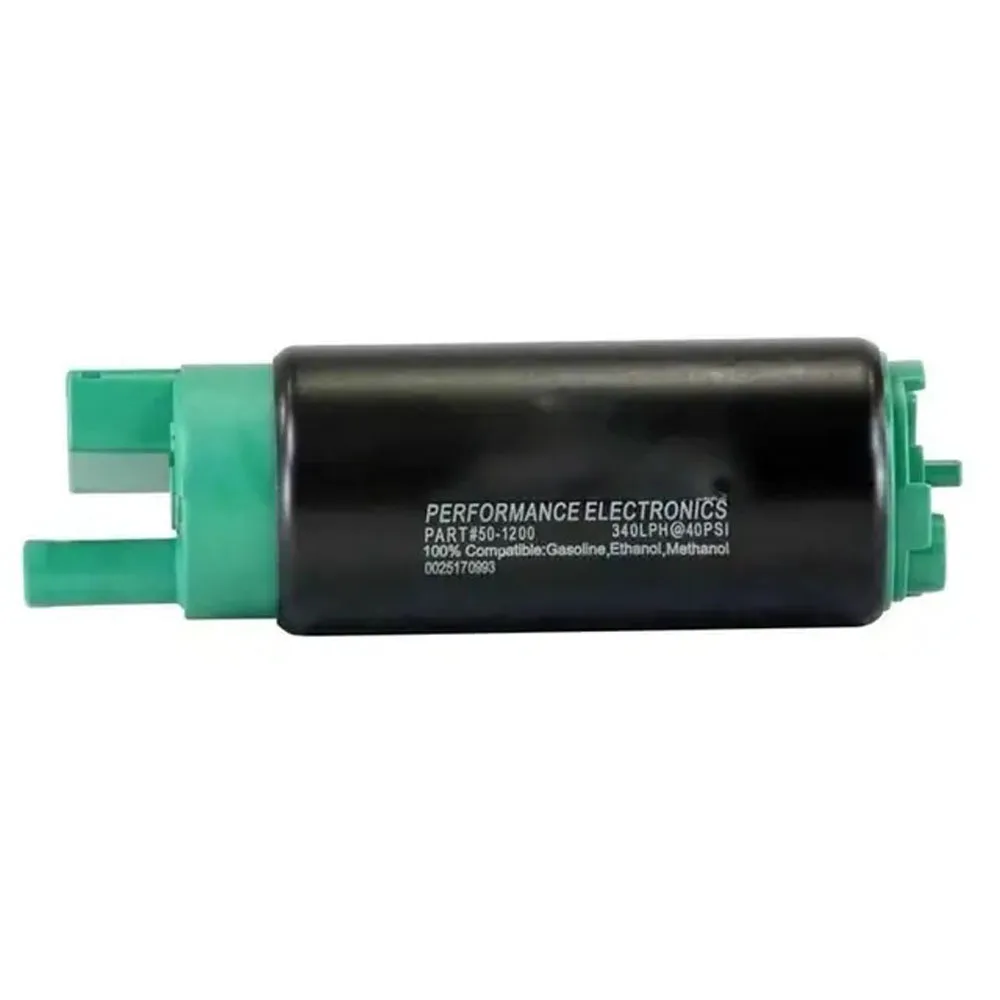

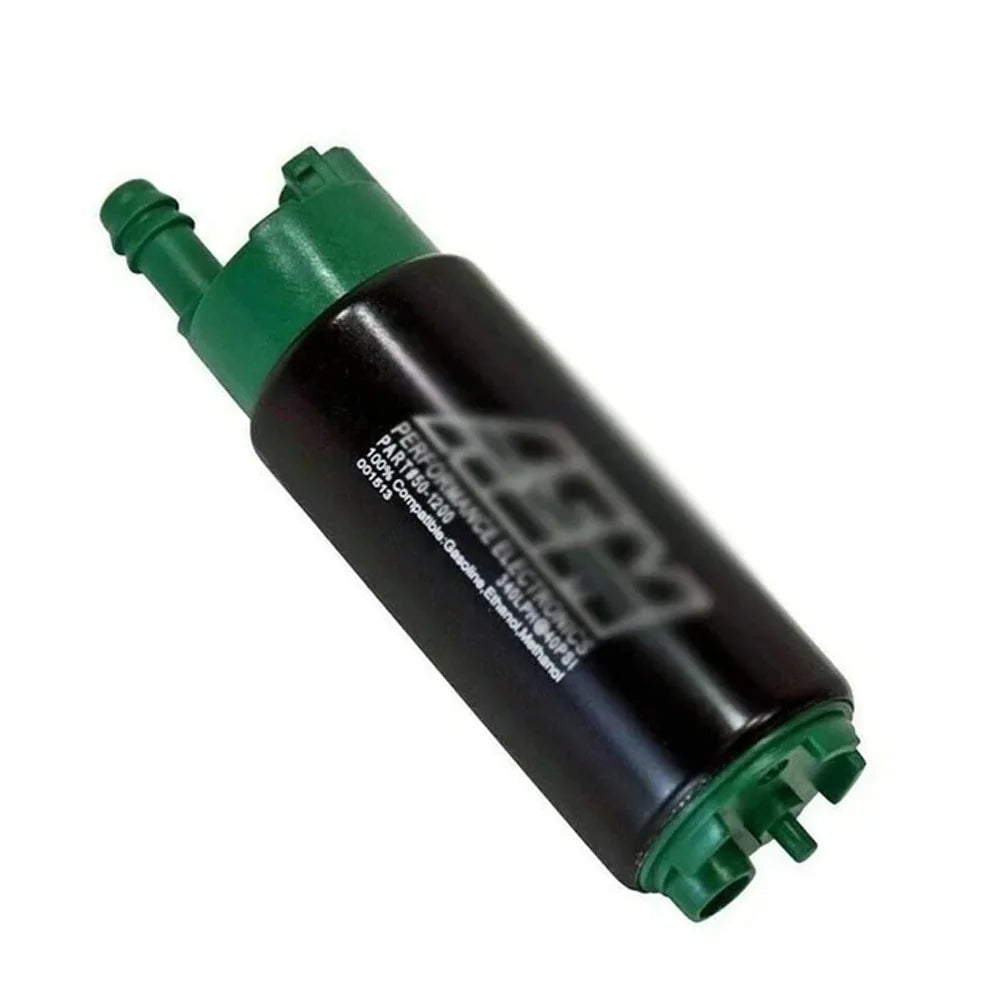

HIGH FLOW IN-TANK FUEL PUMP E85/ COMPATIBLE 340LPH (OFFSET INLET) Original 50-1200 Performance Electronics Car Accessories

The E85-Compatible High Flow In-Tank Fuel Pumps is designed to withstand the low lubricity characteristics of ethanol and methanol fuels. They've been tested to work with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline.

SPECIFICATIONS:

Part Number: for AEM 50-1200

Weight:12.5oz (354grams)

Outside Diameter: 39mm OD

External Materials: Black plated steel with laser etching, green end caps

Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline

Outlet Fitting: 8 mm hose clamp. Offset

PRV Activation: 80 PSI

Impeller Design: Single Scroll Ceramic Turbine

VOLTAGE SPECS:

Connector Terminal: 6 mm Spade (pos/neg)

Min Voltage Input: 6 volts

Max Voltage Input: 18 volts

Current Draw (40 psi): 12 amps (13.5v)

Current Draw (80 psi): 15 amps (13.5v)

Fuse: 15 amps (13.5v), 20 amps (13.5v) MAX
